11-inch Industrial Clutch Type Tapping Machine M12 - Product Details and Technical Parameters

I. SIMETT Industrial Grade Benchtop Tapping Machine Core Parameters

 Type of Equipment: Benchtop Tapping Machine (Precision)

 Maximum Tapping Capacity: Medium Carbon Steel: M12 Cast Iron: M10

 Column Diameter: 50mm (Reinforced Structure)

 Spindle Stroke: 50mm (Precision Vertical Feeding)

 II. Processing Space Distance from spindle centre to column: 140mm (Optimised Workspace)

 Spindle End to Work Table Maximum distance from the spindle end to the worktable: 265mm (adjustable design)

 Size of the worktable: 230 × 200mm (cast iron platform)

 Size of the base: 365 × 254mm (solid support)

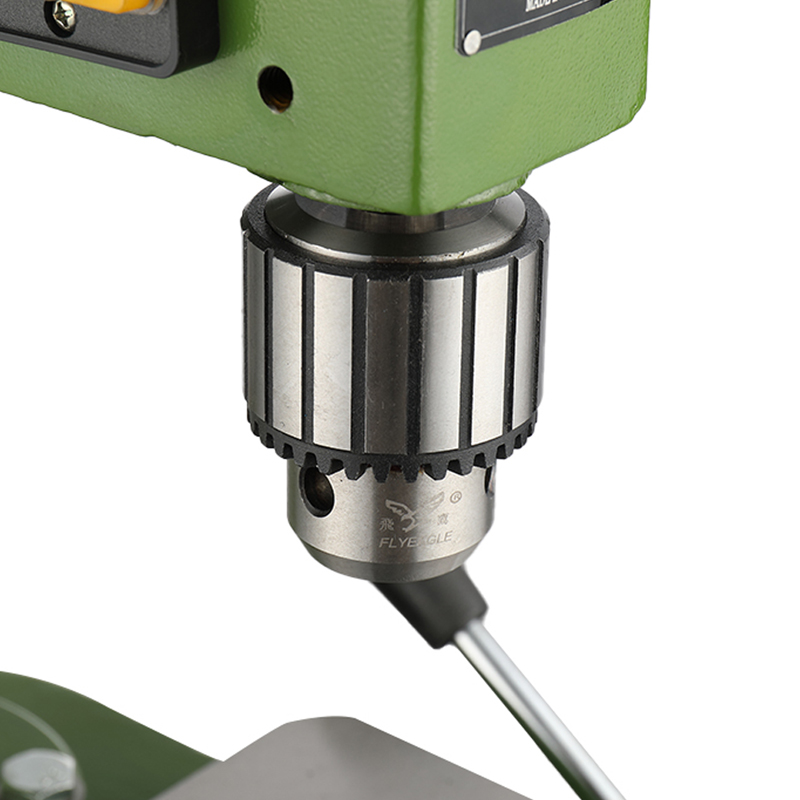

 Third, the spindle system Spindle taper: B16 precision taper

 Speed range: three speed (250/480/800 rpm) 250rpm: suitable for large-diameter tapping 480rpm: universal machining speed 800rpm: high efficient processing of small holes

 Drive motor: 550W high torque motor (continuous work without heat)

 IV. Equipment Specifications Overall machine height: 767mm ( Ergonomics )

 Net/Gross Weight: 60kg/70kg

Packing size: 58×37×70cm (standard) (export packaging)

 V. Product Advantages Precision tapping: B16 spindle taper ensures the threading

 Processing precision Triple variable speed: Optimised speed selection for different materials Rigid Structure: 50mm thicker column effectively suppresses vibration

 Compact Compact design: small footprint, suitable for flexible workshop layout.
